8 ft NSF Restaurant Hood And Exhaust Fan 14 HBS

8 ft NSF Restaurant Hood  And Exhaust Fan 14 HBS
Product Overview
Hood #2   8 ft =96 ins        4824VX-2 - 8ft 0" Long Exhaus...
$3,185.00
Was
In Stock
[CA] City of industry G04 7
[TX] Houston HE218 10
[NJ] Clifton NC07 14
Total 31
Shipping Options

1. Same-day, next-day, and third-day delivery are available.
2. The prices are for ONE-TIME transportation using a 26FT truck, please contact our sales for more details.

Pick Up + $0.00
Shipping as together item + $0.00
Delivery + $578.00
Labor Warranty Options
Do not need labor warranty + $0.00
One year labor warranty + $579.00
Two years labor warranty + $1,013.00
If you have any questions? see if you can find answers or similar content here.
Questions & Answers
Total of review 27940
Do you guys have any pdf showing the installation details? and how much to delivery it (8 ft kitchen hood w fan ) to danbury ct 06810? thank you
[Post by marioaugu*********a@gmail.com ]
We will contact you for more information.
[Answered on Monday, 10/23/2023]
Hi I have a restaurant project in which we are looking to install the exhasut in the link below. We need to close out the permit and specifically need : " a hood design package with controls package" . Is this something you can provide me with? Thank you. https://www.coolerdepotusa.com/products/details/100564/8-ft-NSF-Restaurant-Hood-And-Exhaust-Fan-14-HBS
[Post by pe**o@kakun.design ]
Ours don't have controls package
[Answered on Friday, 05/19/2023]
Would you be able to provide an estimate for the following items: Exhaust Hood 7ft 1” Exhaust Blower Exhaust Duct S/S Wall Flashing Electrical system Make up Air Fan Make Up Air Duct Fire Suppression System (ANSUL) Thanks, Sam Hong
[Post by @ ]
only three piece
[Answered on Wednesday, 10/03/2018]
Hi! A couple of questions We live in Las Vegas, Nevada Do you guys install the vents at our location, which is a commercial restaurant when delivering? We also have to change our sprinkler system to fit the vent, will you guys do that too or do we need to call a professional for that? How much would the opperation cost? Thank you so much! Kind regards, Tai
[Post by @ ]
A representative will call you
[Answered on Thursday, 06/21/2018]
Similar Products
Description

Hood #2   8 ft =96 ins



4824VX-2 - 8ft 0" Long Exhaust-Only Wall Canopy Hood with Built-in 3" Back Standoff   x1

- 430 SS Where Exposed x1

- FILTER - 16" tall x 16" wide Kleen-Gard Stainless Steel Baffle Filter with Handles and Bottom Hanging Hook, UL Classified x5

- L55 Series E26 Canopy Light Fixture - High Temp Assembly, Includes Clear Thermal and Shock Resistant Globe (L55 Fixture), Bulbs By Others x3

- EXHAUST RISER - Factory installed 14" Diameter X 4" Height x1

- 1/2 Pint Grease Cup New Style, Flanged Slotted x1

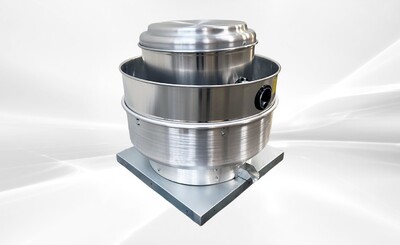

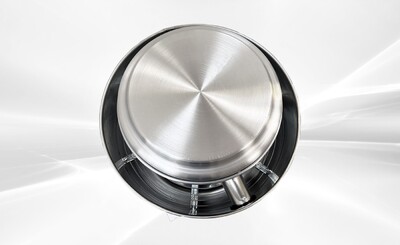

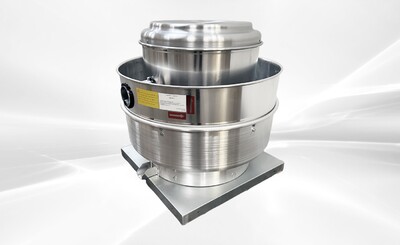

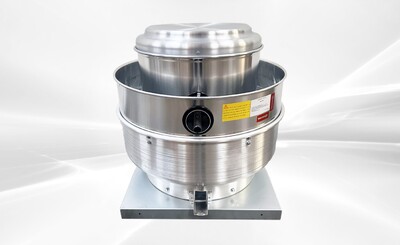

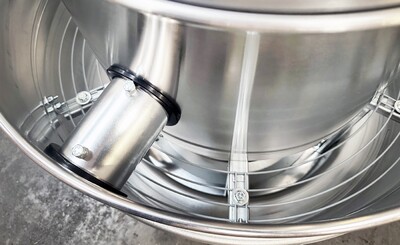

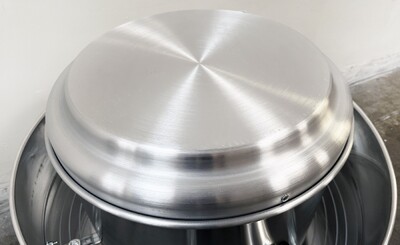

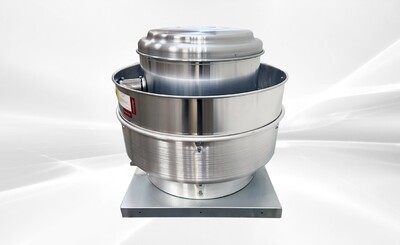

Fan #2 VXD85 - Exhaust Fan (8'-10' Hood Fan)

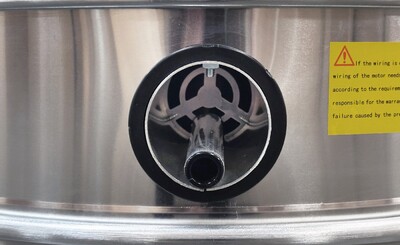

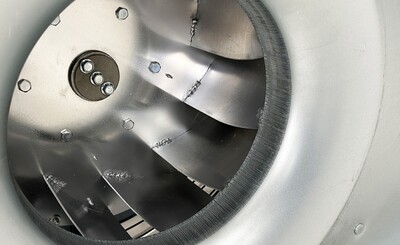

VXD85 High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control (speed control included for single phase only), disconnect switch and 15-3/4" wheel.

Exhaust Fan handles 2500 CFM @ -0.750" wc ESP, Fan runs at 1504 RPM.

Exhaust Motor: 1 HP, 1 Phs, 115 V, 60Hz, 9.8 FLA, ODP (Open Drip Proof)   x1

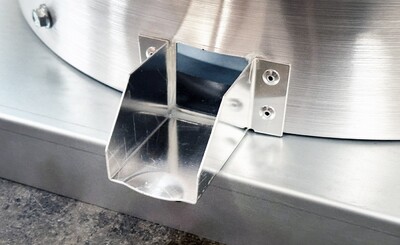

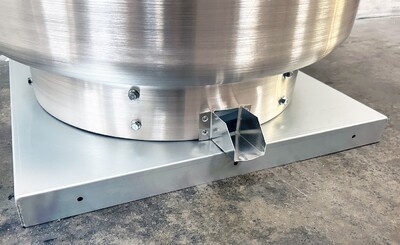

- Grease Cup for kitchen-duty centrifugal exhaust fans, Box Dimensions 17-1/8 L X 5-1/16 W X 3-3/4 H (18 GA.) (Includes Down Spout)


hood installation instruction

https://www.dropbox.com/scl/fi/fip6of34yact7bxqhhp9k/hood-installation-instruction.pdf?rlkey=vcklvjwn4i7pw6ox1bhlsvdal&st=1gxotmri&dl=0




  • Conditions 100% NEW IN THE BOX
  • Shipping Dimension 98*48*25 inchs
  • Shipping Weight 168 lbs
  • Business Address NOT INDOOR
  • All Parts Warranty 2 OR 6 YEARS LIMITED WARRANTY
