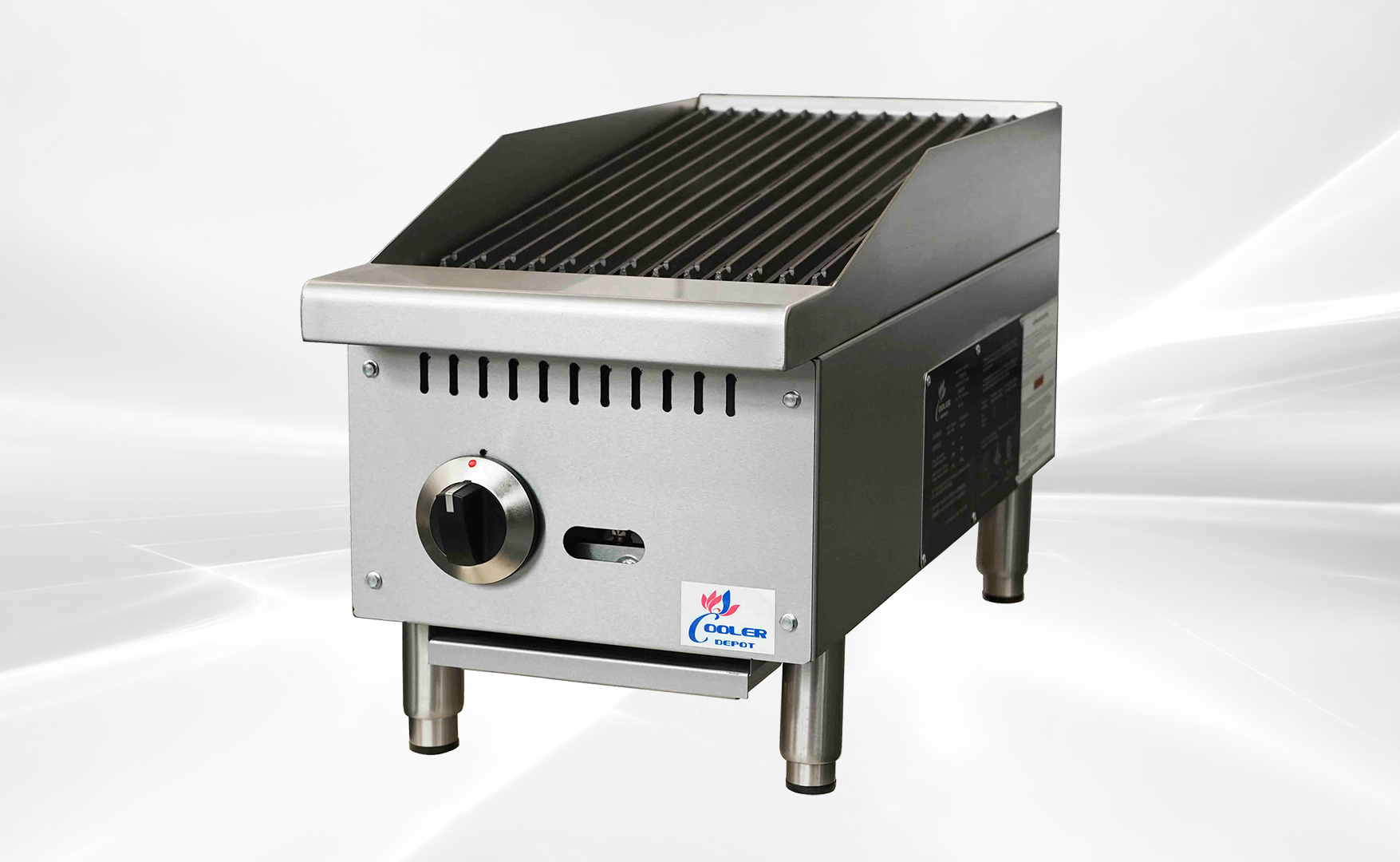

NSF 12 inches Radiant broiler TC-CB12-M
Questions & Answers
| [TX] Houston | HB115 | 1 |
| [CA] City of industry | E615 | 3 |
| [IL] Bolingbrook | ILF012 | 5 |
| [FL] Pembroke Park | FD013 | 8 |
| [NJ] Clifton | ND01 | 19 |
| Total | 36 |
2. The prices are for ONE-TIME transportation using a 26FT truck, please contact our sales for more details.
3. Local Delivery of clearance items will incur an additional handling fee on top of the standard delivery.
4. Local drivers are third-party carriers. Delivery is curbside only. If inside delivery is needed, please arrange it directly with the driver, as additional charges may apply.

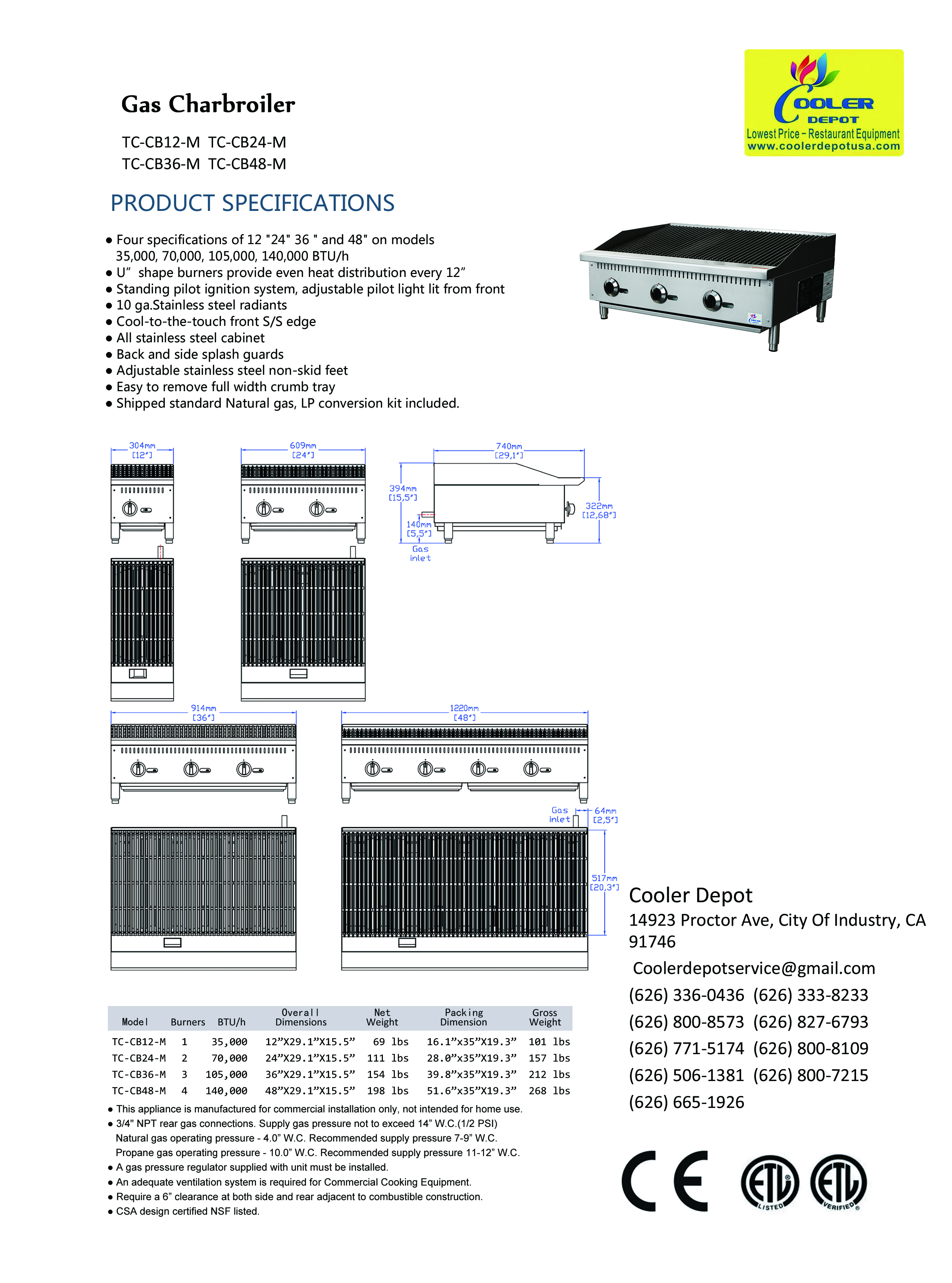

● Four specifications of 12" 24" 36" and 48" models
● 35,000,70,000,105,000,140,000 BTU/h
● U" shape burners provide even heat distribution every 12"
● Standing pilot ignition system, adjustable pilot light that lit from the front
● 10 ga. stainless steel radiants
● Cool-to-the-touch front S/S edge
● All stainless steel cabinet
● Back and side splash guards
● Adjustable stainless steel non-skid feet
● Easy to remove full width crumb tray
● Shipped standard natural gas, LP conversion kit included.
● This appliance is manufactured for commercial installation only, not intended for home use.
● 3/4" NPT rear gas connections. Supply gas pressure not to exceed 14"W.C.(1/2 PSI)
Natural gas operating pressure-4.0"WC. Recommended supply pressure 7-9"WC.
Propane gas operating pressure-100"W.C. Recommended supply pressure 11-12"W.C
● A gas pressure regulator supplied with unit must be installed.
● An adequate ventlation system is required for commercial cooking equipment
● Requires a 6" clearance on both sides and rear adjacent to combustible construction.
● CSA design certified NSF listed.
-
Conditions
100% NEW IN THE BOX
- Shipping Dimension 35x20x16 inchs
- Shipping Weight 101 lbs
- NMFC
- Shipping Class
- Shipping By UPS or FedEx
- Business Address NOT INDOOR
- All Parts Warranty 2 OR 6 YEARS LIMITED WARRANTY
