10 ft NSF Restaurant Hood And Exhaust Fan 18 HBS
Questions & Answers
Do you offer installation?
Post by burr****9@gmail.comWe don't do install
Answered on Friday, 02/14/2025I need a 10’ hood my ceiling height is only 7’ tall is there a hood that has an open face front?
Post by jccarp******j@gmail.comYes
Answered on Thursday, 09/05/20242 questions here, 1. if im planning on putting under the hood 100'' then what size hood do i need ? 2. do you sell also the make up air and the others parts as a complete set ?
Post by xabig*****5@gmail.com9' or 10' , we have the make up air
Answered on Friday, 03/24/2023Fire suppression needs to be added?? Just asking
Post by mr.cl*****1@mail.comdepends your fire system company , u can do the whole restaurant together ,don't have to have it individual one
Answered on Wednesday, 03/01/2023I need the 8ft hood with exhaust fan 2 pics. And where I have to come pick up?
Post by namast******r@gmail.comHello, we ship and are located in California
Answered on Monday, 11/07/2022| [FL] Pembroke Park | FL group | 3 |
| [TX] Houston | TX group | 4 |
| [CA] City of industry | CA group | 5 |
| [IL] Bolingbrook | IL group | 8 |
| Total | 20 |
2. The prices are for ONE-TIME transportation using a 26FT truck, please contact our sales for more details.
3. Local Delivery of clearance items will incur an additional handling fee on top of the standard delivery.
4. Local drivers are third-party carriers. Delivery is curbside only. If inside delivery is needed, please arrange it directly with the driver, as additional charges may apply.
Hood #3 10 ft =120 ins

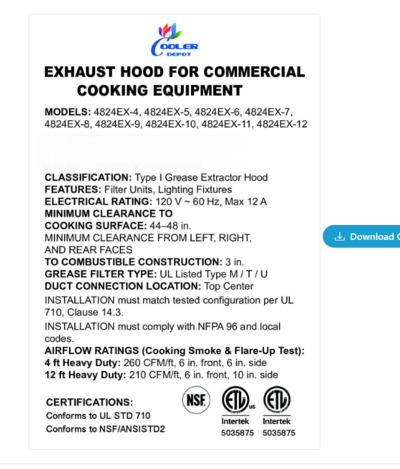

4824VX-2 - 10ft 0" Long Exhaust-Only Wall Canopy Hood with Built-in 3" Back Standoff x1
- 430 SS Where Exposed x1
- FILTER - 16" tall x 16" wide Kleen-Gard Stainless Steel Baffle Filter with Handles and Bottom Hanging Hook, UL Classified x7
- L55 Series E26 Canopy Light Fixture - High Temp Assembly, Includes Clear Thermal and Shock Resistant Globe (L55 Fixture), Bulbs By Others x3
- EXHAUST RISER - Factory installed 16" Diameter X 4" Height x1
- 1/2 Pint Grease Cup New Style, Flanged Slotted x2

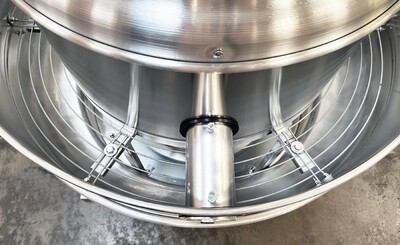

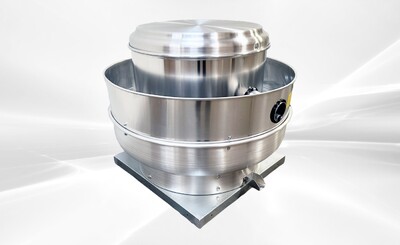

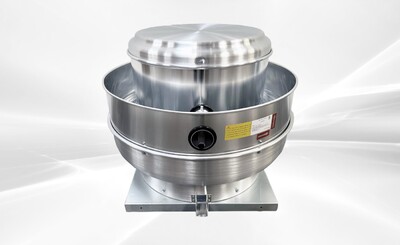

Fan #2 VXD85 - Exhaust Fan (8'-10' Hood Fan)

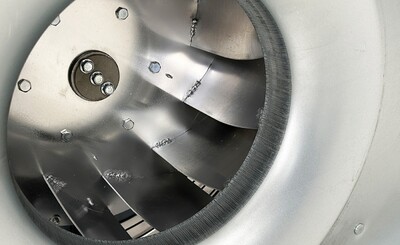

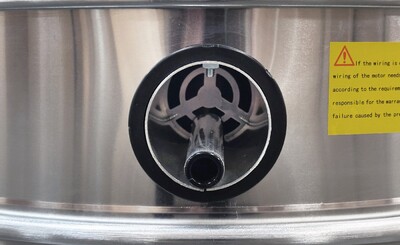

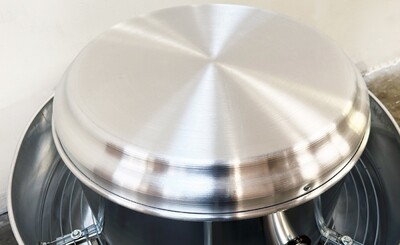

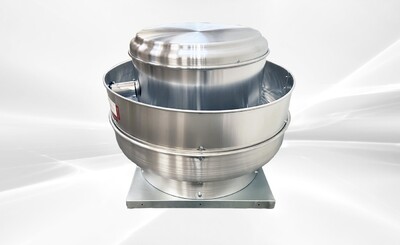

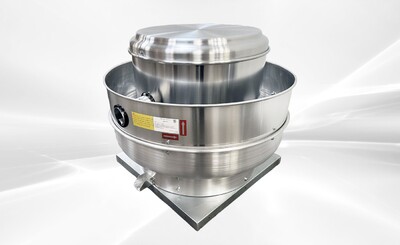

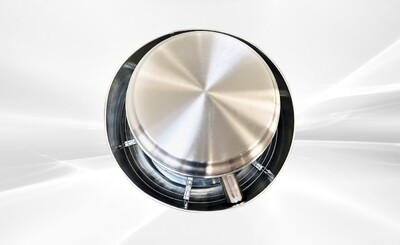

VXD85 High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control (speed control included for single phase only), disconnect switch and 15-3/4" wheel.
Exhaust Fan handles 2500 CFM @ -0.750" wc ESP, Fan runs at 1504 RPM.
Exhaust Motor: 0.750 HP, 1.5 Phs, 115 V, 60Hz, 9.8 FLA, ODP (Open Drip Proof) x1

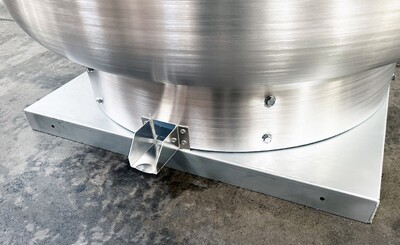

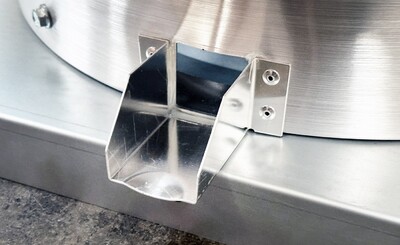

- Grease Cup for kitchen-duty centrifugal exhaust fans, Box Dimensions 17-1/8 L X 5-1/16 W X 3-3/4 H (18 GA.) (Includes Down Spout) x1
hood installation instruction
-
Conditions
100% NEW IN THE BOX2 components
- Shipping Dimension 122x29x55/48x40x38 inchs
- Shipping Weight 393/187 lbs
- NMFC 25525-3/61700-4
- Shipping Class 250/175
- Note W/48x40PLT
- Business Address NOT INDOOR
- All Parts Warranty 2 OR 6 YEARS LIMITED WARRANTY
