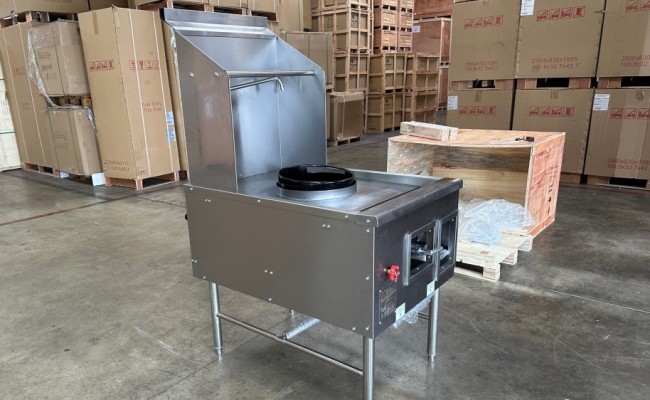

NSF 13 in 1 hole Chinese Wok Range With waterfall TC-W1L0 NG
Questions & Answers
Is this stove still available? if yes can i go pick up from the warehouse?
Post by kawsa*****m@gmail.comYes and it is available in all warehouses and available to pick up as of now.
Answered on Thursday, 07/31/2025How does the water drain out? pipe size?
Post by jiseok******7@gmail.com3/4
Answered on Thursday, 06/05/2025Propane tank can be used?
Post by jiseok******7@gmail.comWe can convert to propane for additional $150
Answered on Thursday, 06/05/2025And it's use ng?
Post by ch**f@shikishokudo.comYes
Answered on Friday, 03/07/2025It's use jet burner?
Post by ch**f@shikishokudo.comYes ,u can change yourself
Answered on Tuesday, 03/11/2025| [IL] Bolingbrook | ILN027 | 7 |
| [FL] Pembroke Park | FI003 | 8 |
| [CA] City of industry | F783 | 17 |
| [TX] Houston | HA202 | 19 |
| Total | 51 |
2. The prices are for ONE-TIME transportation using a 26FT truck, please contact our sales for more details.
3. Local Delivery of clearance items will incur an additional handling fee on top of the standard delivery.
4. Local drivers are third-party carriers. Delivery is curbside only. If inside delivery is needed, please arrange it directly with the driver, as additional charges may apply.
LP propane adds an additional $150
https://youtube.com/shorts/TXIYnjr6p50?si=nYFKnPAYWwGBezVk
·Stainless steel front, sides,top, landing ledge, high back splash and pipe rack
·Water cooled top and built-in drain system help control stove top temperature.
·Manually-controlled Chinese swing faucet is located between holes to avoid intense burner heat.
·Knee level an "L” shaped adjustable gas valve, keeping hands free for cooking
- Anti-clogging 18 & 28 tip jet burner, at 95,000BTU（28KW)or125,000BTU（37KW)
- Intense cone shaped heat
- Pilot ignition system
·13 and 16" (330 and 406mm) wok top sizes available
·This appliance is manufactured for commercial installation only, not intended for home use.
·3/4" NPT rear gas connections. Supply gas pressure not to exceed 14"W.C.（1/2PSI)
Natural gas operating pressure-5.0"w.C. Recommended supply pressure 7-9”W.C.
Propane gas operating pressure-10.0"W.C. Recommended supply pressure 11-12”W.C.
●A gas pressure regulator supplied with unit must be installed.
·Water inlet and drain outlet connect thread 1/2"NPT female
·An adequate ventilation system is required for commercial cooking equipment.
·Requires a 6” clearance on both sides and rear adjacent to combustible construction.
-
Conditions
100% NEW IN THE BOX
- Shipping Dimension 47x31x42 inchs
- Shipping Weight 270 lbs
- NMFC 26750-5
- Shipping Class 125
- Shipping With/Without Pallet With Pallet
- Business Address NOT INDOOR
- All Parts Warranty 2 OR 6 YEARS LIMITED WARRANTY
