NSF Undercounter high temperature Dishwasher 220v 1or3 ph H50-S1
Questions & Answers

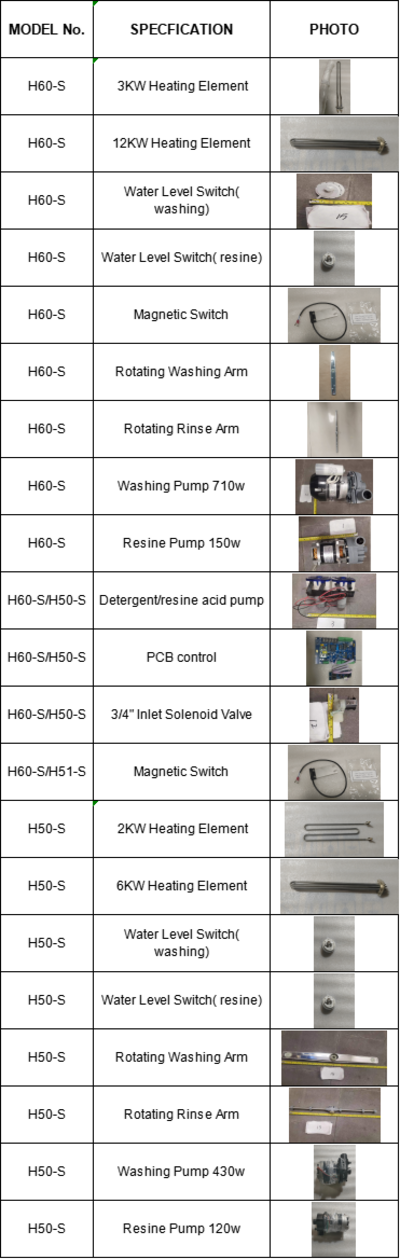

Is there a parts list for these units, is have a h50-st
Post by dspe****r@albion.eduWe dont have a list for parts sorry
Answered on Thursday, 02/19/2026When installing this unit does it require a floor drain? i recently purchased one and connected the drain to the air gap and then to our disposal. it will not drain. where can i get a manual for this unit?
Post by cba***r@mirasolgreenhousehomes.orgUser manual: https://drive.google.com/file/d/15ul0hxayxyqgnggsehhidcfw5iqok1s_/view?usp=sharing https://youtube.com/shorts/enpdearmjay?si=qy-que_2fxfibdp4 https://youtube.com/shorts/zxkod4fupr4?si=zkj53m2fdq0p6tjj

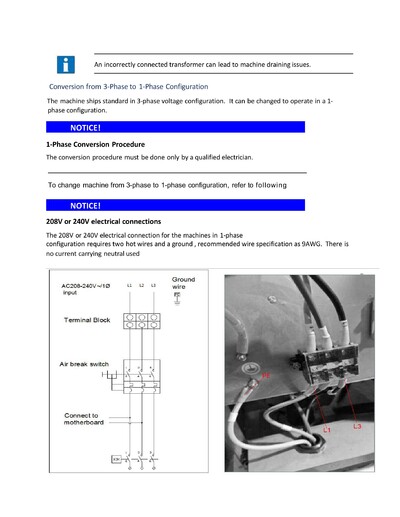

Answered on Wednesday, 12/24/2025I am having trouble converting the machine to 220 single phase. some guidance would be much appreciated.
Post by sarjanj*******n@gmail.comThe last picture https://www.coolerdepotusa.com/products/details/102521/nsf-undercounter-high-temperature-dishwasher-220v-1or3-ph-h50-s1
Answered on Wednesday, 12/24/2025What nema plug does this require? and i assume it's a 208/240v 30-amp dedicated circuit that's recommended to power it?
Post by talkto******o@gmail.comIt does not come with nema plug. wiring required.
Answered on Tuesday, 11/25/2025How long does it take to run a single load?
Post by jeri****3@protonmail.comIt has 3 cycle options: 120 seconds, 150 seconds, 180 seconds.
Answered on Tuesday, 11/11/2025| [IL] Bolingbrook | ILD006 | 26 |
| [CA] City of industry | C414 | 59 |
| [TX] Houston | HC115 | 59 |
| Total | 144 |
2. The prices are for ONE-TIME transportation using a 26FT truck, please contact our sales for more details.
3. Local Delivery of clearance items will incur an additional handling fee on top of the standard delivery.
4. Local drivers are third-party carriers. Delivery is curbside only. If inside delivery is needed, please arrange it directly with the driver, as additional charges may apply.
208v-240v single-phase and three-phase can be used, but both can be used.

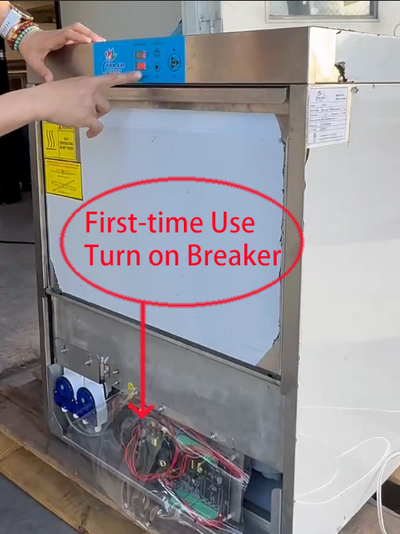

Automatic Startup Process
After the machine is powered on, it will automatically:
1. Fill the tank with water.
2. Begin heating the rinse water.
3. Complete the heating cycle before becoming ready for operation.
This process typically takes approximately 15 minutes.
Indicator Light
If the rinse light is OFF, this is normal. It indicates that the machine is currently heating and is not yet ready for use.
Please allow the machine to complete the heating cycle. Once the target temperature is reached, the machine will be ready for normal operation.
https://www.youtube.com/embed/6hcZ9DVeu9w
User Manual:
https://drive.google.com/file/d/15ul0hxAYXyQGNGgSehhiDCfW5IQOK1s_/view?usp=sharing
https://youtube.com/shorts/eNPDEarmjAY?si=Qy-que_2FxFibDp4
https://youtube.com/shorts/ZXKOD4fupR4?si=zKJ53m2FdQ0p6TJJ
ETL LIST
https://drive.google.com/file/d/1kqsWuxK02B7euwXRgnMJfhe0viH6mXQI/view?usp=sharing
E7 FIX
https://drive.google.com/file/d/1HUn5KFepNxnqjZaVZPNSKgSKvSqXKxWl/view?usp=drive_link
Restaurant Dishwasher Setup and Routine Maintenance: Installation Instructions
https://youtu.be/_fE4oFg9ras?si=c4ifeKrfqXVWdJaK
https://youtu.be/5-ELP37ZA2g?si=72kRWa8VGckKvIdG
https://youtu.be/YAuFPxiWHhY?si=cwBz-mL5j4_A2NUs
https://youtu.be/p1Yw-gecCcI?si=47hq7Tutl8osC87g
https://youtu.be/sXhuGYADMwo?si=EOyERNfQIkeWqfOx

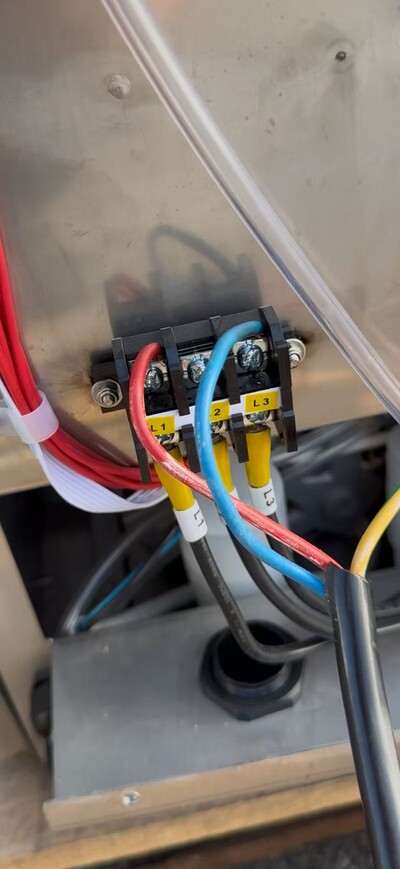

Undercounter H50-S1 Single Phase Connection.mp4
https://drive.google.com/file/d/1xSir_y01XFIX0eEEBg79Zn-w9W2gabOR/view?usp=sharing
Undercounter H50-S1 Three Phase Connection.mp4
https://drive.google.com/file/d/1ifYz5LEbYrVSgvqpz7rxeLacm6P4_B81/view?usp=sharing
Undercounter H50-S1 User Manual：
https://drive.google.com/file/d/1YpFrIsh-SXfJp5a_zRkEes0FbGHP_34j/view?usp=sharing
Undercounter H50-S1 Daily Cleaning Process.mp4
https://drive.google.com/file/d/1AjmAQ1y6L7ULUkWxfJY18EU45n33kY5K/view?usp=sharing
Dishwasher Pre-Installation: Connect the Water Supply Hose, Drain Hose & Power Cable:
https://drive.google.com/file/d/1tw5B2hu3L-W8_OqJjHKZi8kJI0Q1bMYD/view?usp=sharing
Dishwasher E7 Error Code Reset Procedure
https://drive.google.com/file/d/1F7qnF7st2OM4_2xPBc6TYVJ410_Z7xq3/view?usp=sharing
Dishwasher Press & Hold for 1 Minute to Prime
https://drive.google.com/file/d/1YscVFQccDxDqwxlcOpg5_zOiIOtIRliW/view?usp=sharing
Dishwashing Detergent and Rinse Aid Connection:
https://drive.google.com/file/d/1dLRikvbqjuO6T3wvnANy17u5_du-JYi4/view?usp=sharing
How to Fix No Water Entering the Dishwasher.mp4
https://drive.google.com/file/d/1IvMYgubfGCbow92hwFpQgQzNPhVeg2up/view?usp=sharing
Temperature Adjustment:
https://drive.google.com/file/d/1eWUiqdoWIb9gTcJXCWUPAVaHPIVh-qi0/view?usp=sharing
Dishwasher °F and °C Switching .mp4
https://drive.google.com/file/d/1Be__JiSOpXTSRIvoNb8jLYcl23Yh-h88/view?usp=sharing
Replace the Water Level Pressure Sensor
https://drive.google.com/file/d/1rPh9JP5HjPIjsuveaJ5MK2_czAeD1Cmf/view?usp=sharing

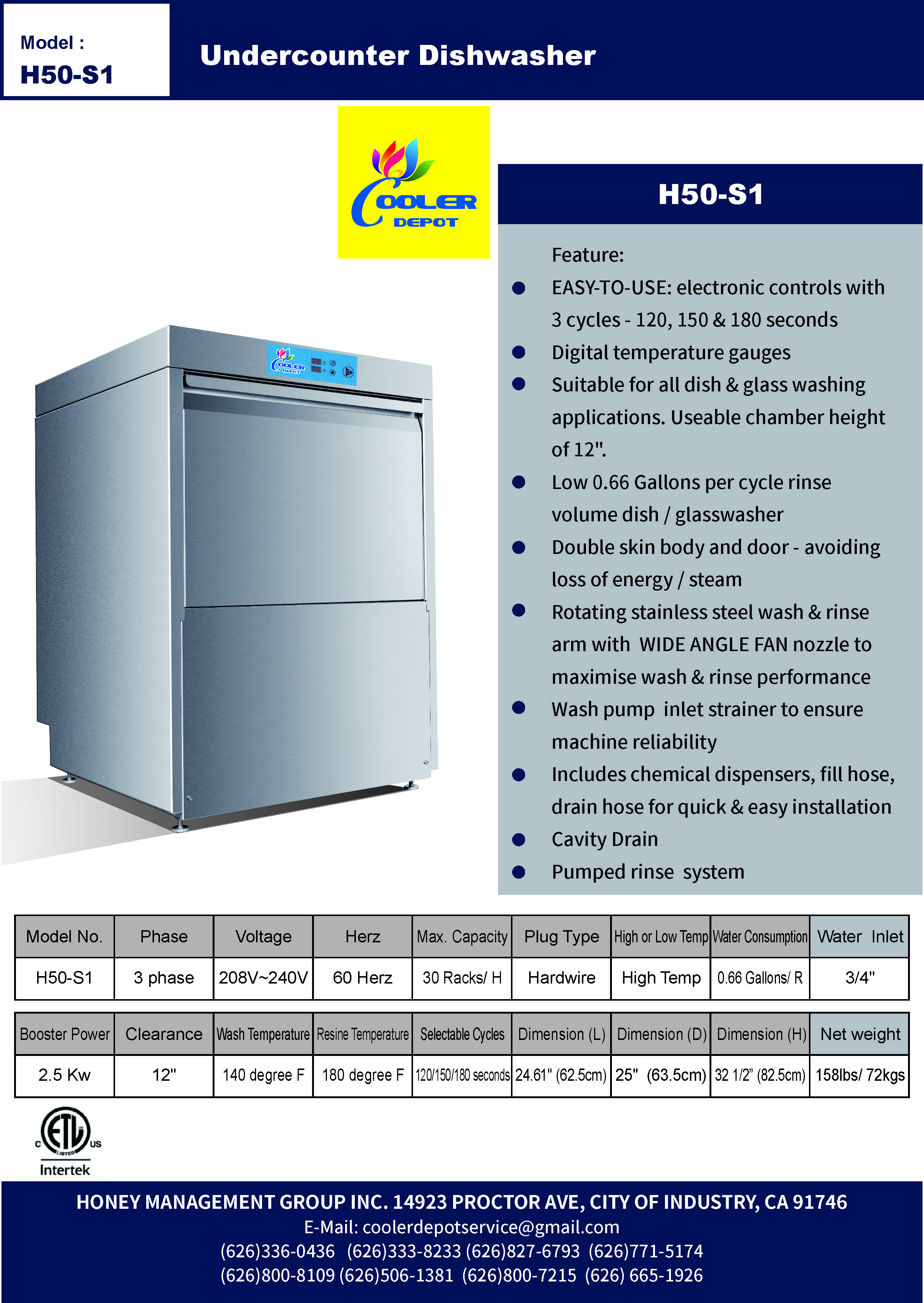

Feature:
- EASY-TO-USE: electronic controls with 3 cycles-120,150 &180 seconds
- Digital temperature gauges. Suitable for all dish & glass washing applications. Useable chamber height of 12″
- Low 0.66 gallons per cycle rinse volume dish/glass washer
- Double skin body and door-avoiding loss of energy/steam
- Rotating stainless steel wash & rinse arm with WIDE ANGLE FAN nozzle to maximize wash & rinse performance
- Wash pump inlet strainer to ensure machine reliability
- Includes chemical dispensers, fill hose, drain hose for quick & easy installation
- Cavity drain
- Pumped rinse system
-
Conditions
100% NEW IN THE BOX
- Shipping Dimension 30x30x43 inchs
- Shipping Weight 207 lbs
- NMFC 119560-5
- Shipping Class 100
- Shipping With/Without Pallet Without Pallet
- Note W/30x30PLT
- Business Address NOT INDOOR
- All Parts Warranty 2 OR 6 YEARS LIMITED WARRANTY
