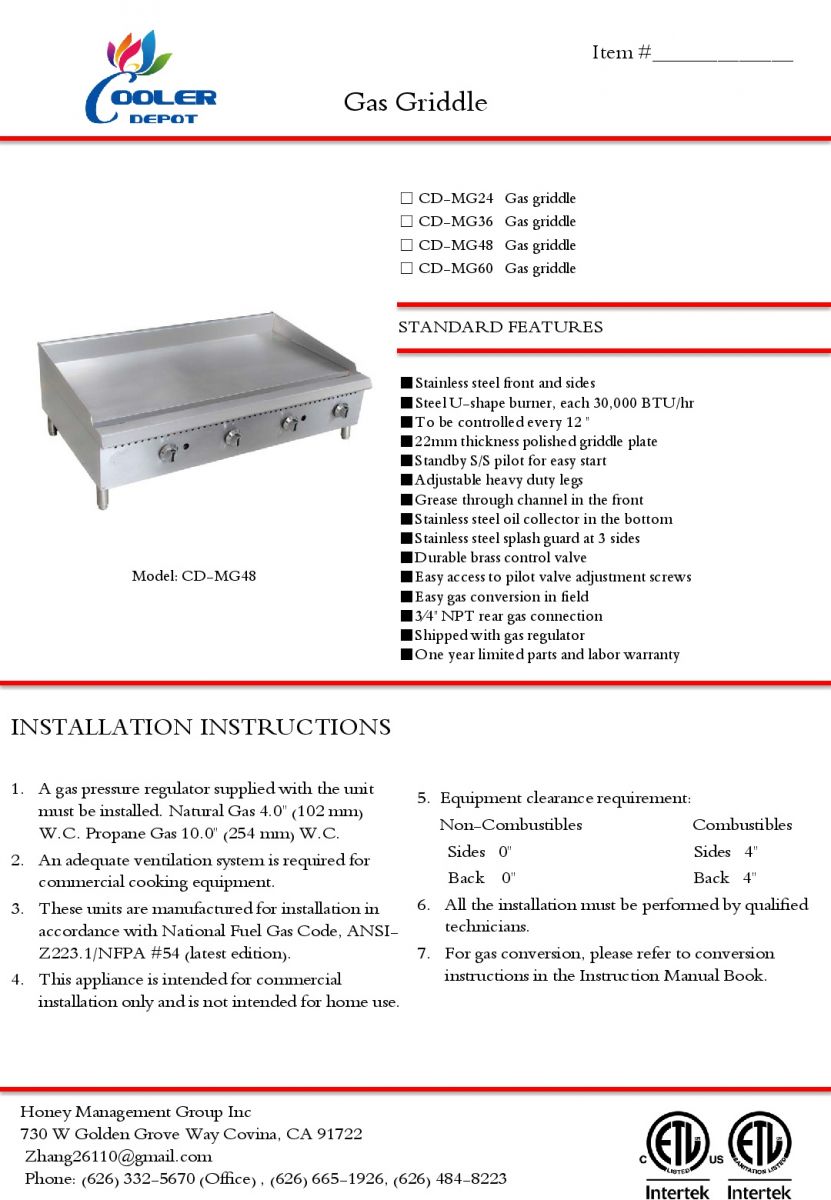

■Stainless steel front and sides

■Steel U-shape bumer,each 30,000 BTU/hr

■To be controlled every 12"

■22mm thickness polished griddle plate

■Standby S/S pilot for easy start

■Adjustable heavy duty legs

■Grease through channel on the front

■Stainless steel oil collector at the bottom

■Stainless steel splash guard at 3 sides

■Durable brass control valve

■Easy access to pilot valve adjustment screws

■Easy gas conversion in field

■34"NPT rear gas connection

■Shipped with gas regulator

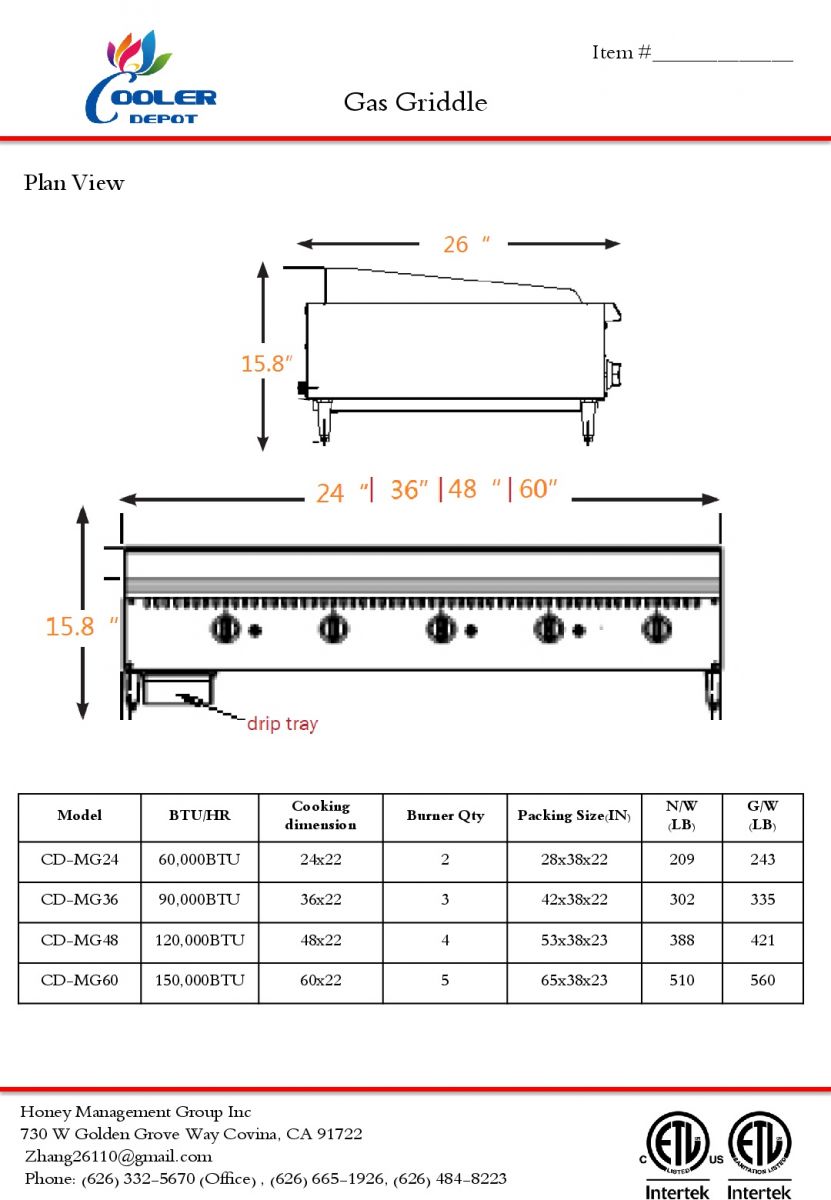

●Five specifications of12"24"36"48"60"on models.

30,000,60,000,90,000,120,000,150,0000BTU/h

● Gas control knob every 12"

●3/4"griddle plate,Standing pilot ignition system

● Cool-to-the-touch front S/S edge

● All stainless steel cabinet

● Back and side splash guards fully welded to griddle plate

● Adjustable stainless steel non-skid feet

● Easy to remove 4 1/2 quart grease drawer with weep hole

● Shipped standard Natural gas,LP conversion it included

●This applanceis manufactured forcommercialinstalation only,notintended forhome use

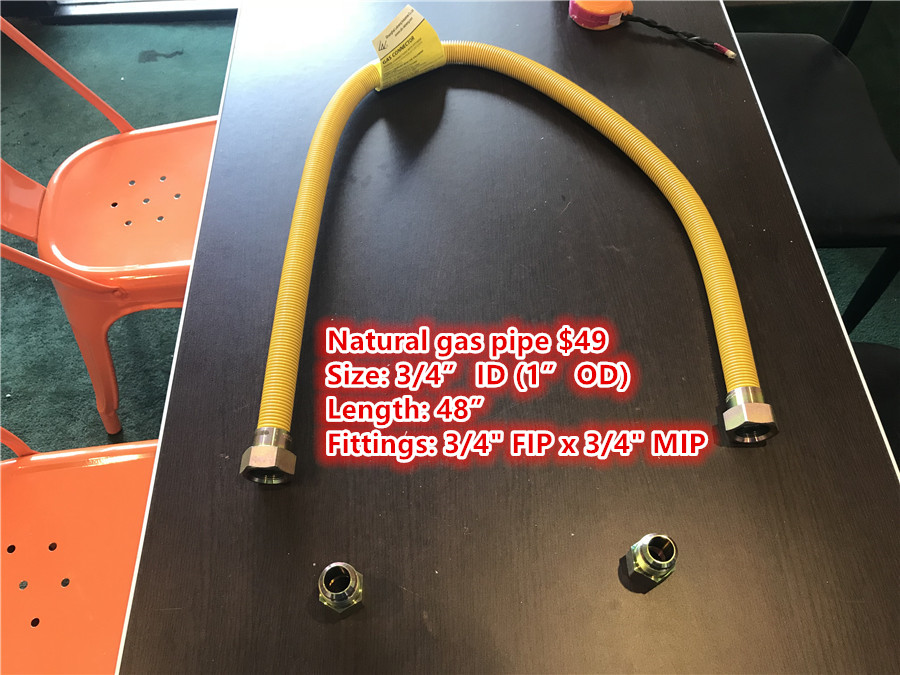

●3/4"NPTrear gas connections.Supply gas pressure notto exceed 14"W.C.(1/2 PSI)

Natural gas operating pressure-4.o"W.C.Recommended supply pressure 7-9"W.C

Propane gas operating pressure-10.0"W.C.Recommended supply pressure 11-12"W.C

●A gas pressure regulator supplied with unit must be installed.

●An adequate ventiation system is required forCommercial Cooking Equipment

●Require a6"clearance atboth side and rear adjacentto combustible construction

●CSA design certified NSF listed.
