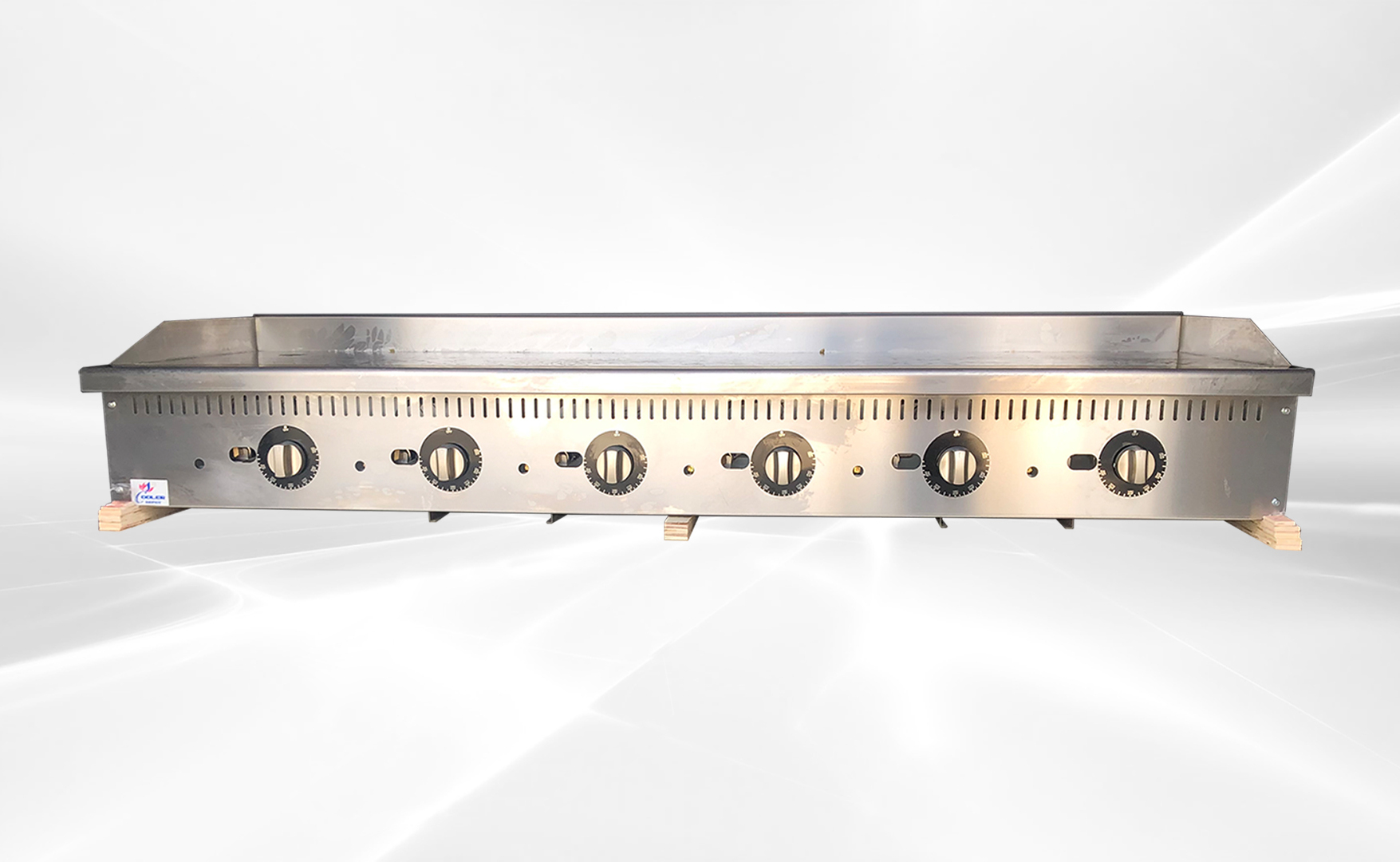

NSF 72 ins Thermostat Gas Heavy Duty Griddle TC-G72-TP
Questions & Answers
2. The prices are for ONE-TIME transportation using a 26FT truck, please contact our sales for more details.
3. Local Delivery of clearance items will incur an additional handling fee on top of the standard delivery.
4. Local drivers are third-party carriers. Delivery is curbside only. If inside delivery is needed, please arrange it directly with the driver, as additional charges may apply.

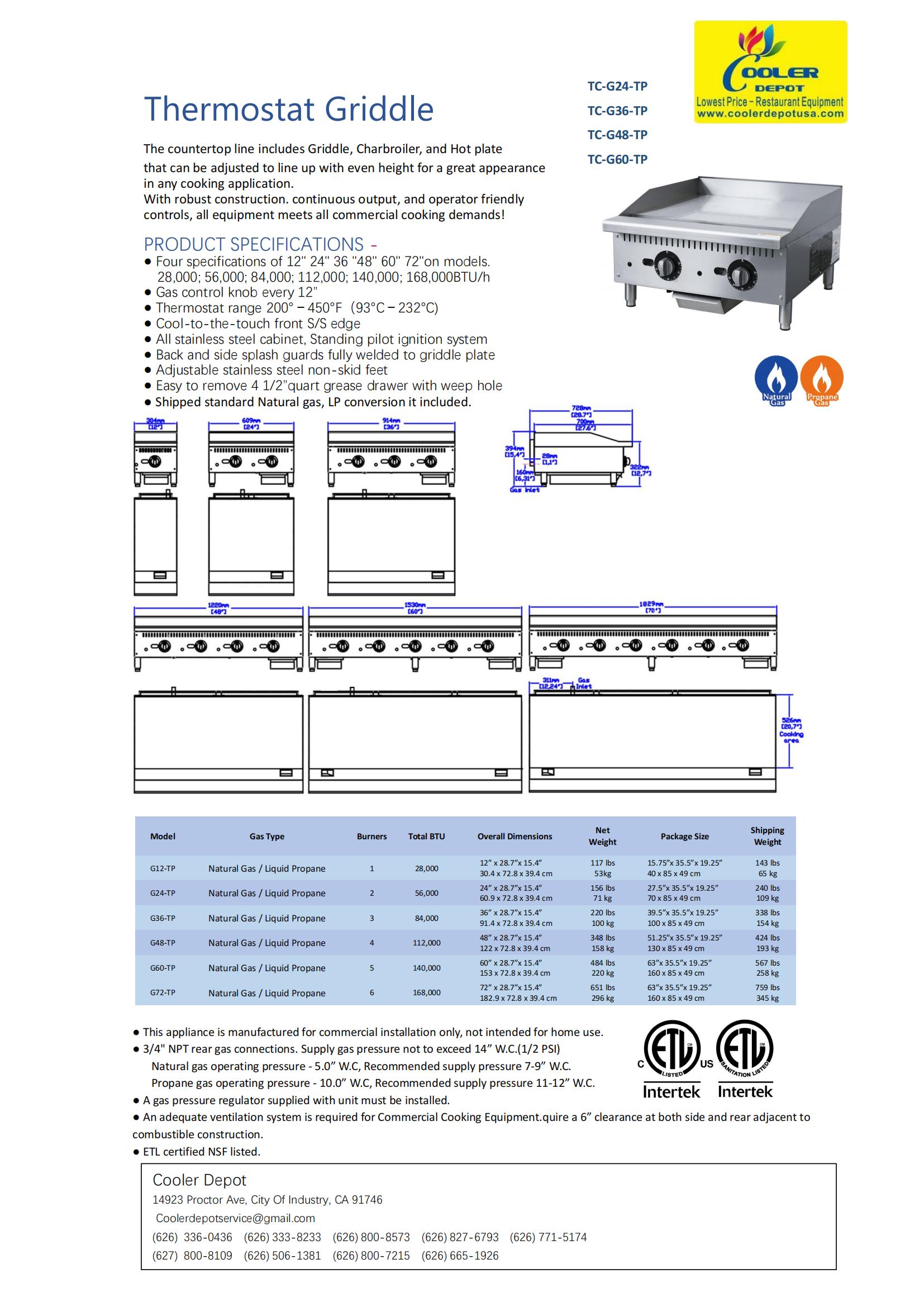

● Four specifications of 12" 24" 36" 48" 60" 72" models.
● 28,000, 56,000, 84,000, 112,000, 140,000, 168,000 BTU/h
● Gas control knob every 12"
● Thermostat range 200°-450°F(93°C-232°C)
● Cool-to-the-touch front S/S edge
● All stainless steel cabinet, standing pilot ignition system
● Back and side splash guards fully welded to griddle plate
● Adjustable stainless steel non-skid feet
● Easy to remove 4 1/2" quart grease drawer with weep hole
● Shipped standard natural gas, LP conversion it included.
● This appliance is manufactured for commercial installation only. Not intended for home use
● 3/a" NPT rear gas connections. Supply gas pressure not to exceed 14"WC.(1/2 PS)
Natural gas operating pressure-5.o" WC. Recommended supply pressure 7-9"WC
Propane gas operating pressure-10.0"WC. Recommended supply pressure 11-12"WC
● A gas pressure regulator supplied with unit must be installed.
● An adequate ventilation systemis required for commercial cooking equipment.
● Requires a 6"clearance on both sides and rear adjacent to combustible construction
● ETL certified NSF listed.
-
Conditions
100% NEW IN THE BOX
- Shipping Dimension 75x34x19 inchs
- Shipping Weight 622 lbs
- NMFC 61700-9
- Shipping Class 70
- Shipping With/Without Pallet With Pallet
- Business Address NOT INDOOR
- All Parts Warranty 2 OR 6 YEARS LIMITED WARRANTY
